 3 May 2025
⇐20250502 ⇐Week ⇐Rotation Today Rotation⇒ Week⇒ 20250504⇒


Main Far-side SDO short-wave SDO long-wave
HMI Mag 20250503 17:58 HMI 6173Å 20250503 18:46 No Time Data Available
AIA 171Å 20250503 19:28 AIA 193Å 20250503 19:28 XRT 20250502 18:03

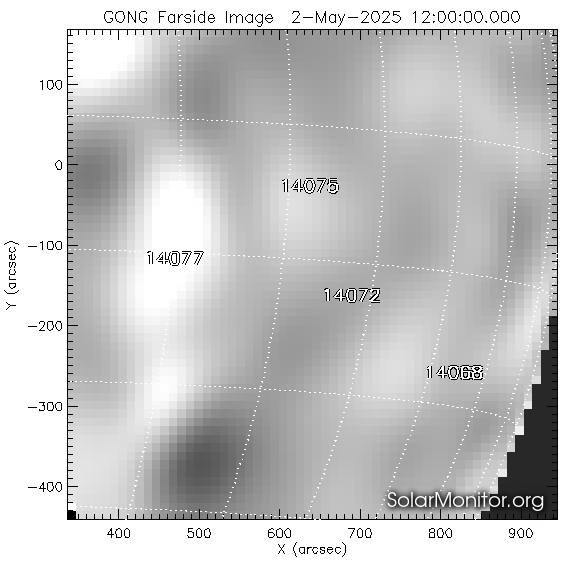

HMI Mag 20250503 17:58 No Time Data Available GONG Farside 20250502 12:00
No Time Data Available AIA 193Å 20250503 19:28 No Time Data Available

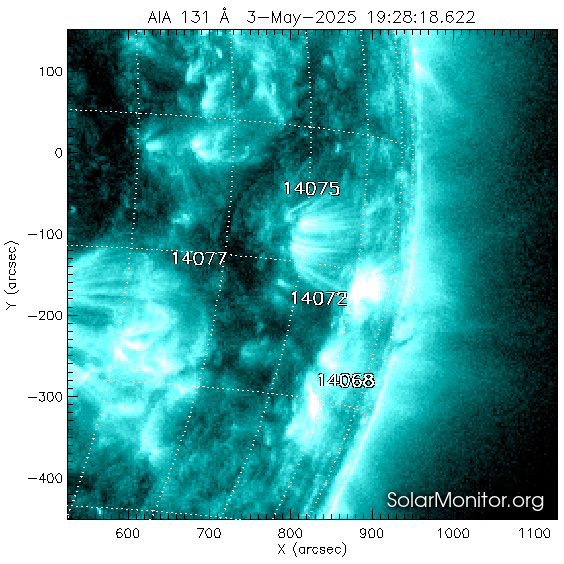

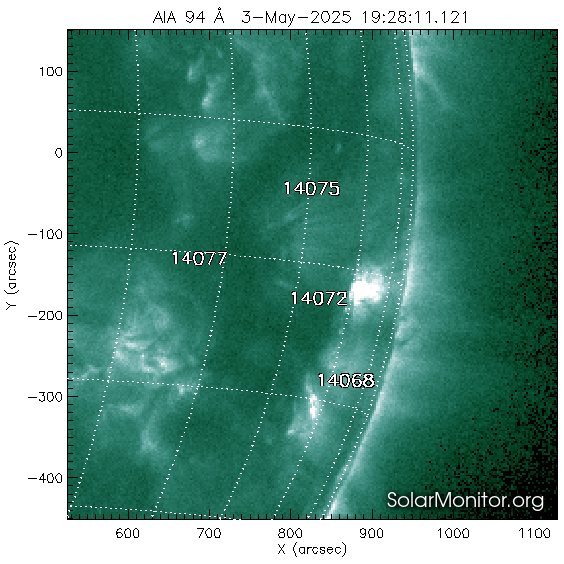

HMI Mag 20250503 17:58 AIA 94Å 20250503 19:28 AIA 131Å 20250503 19:28

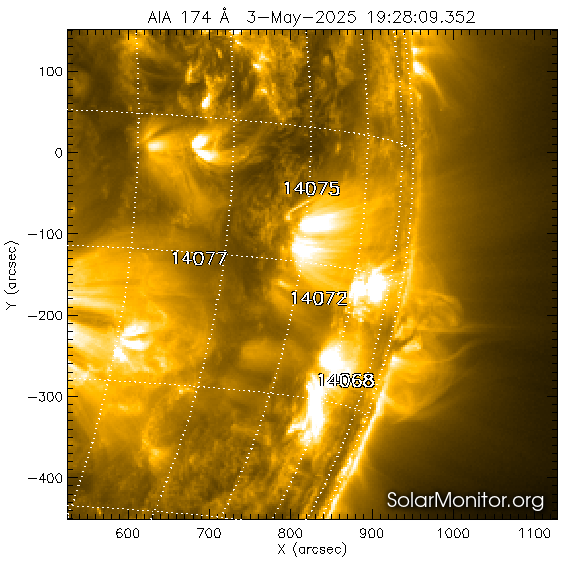

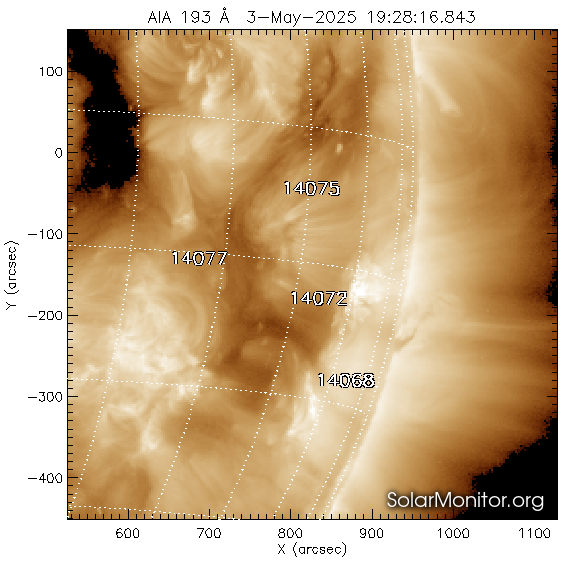

AIA 171Å 20250503 19:28 AIA 193Å 20250503 19:28 AIA 211Å 20250503 19:28

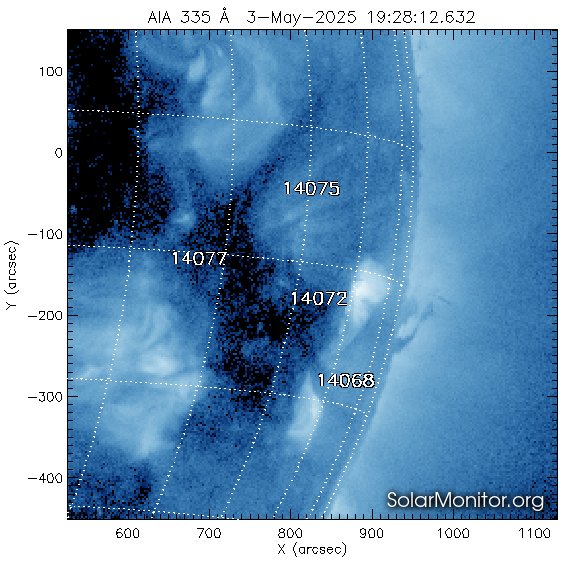

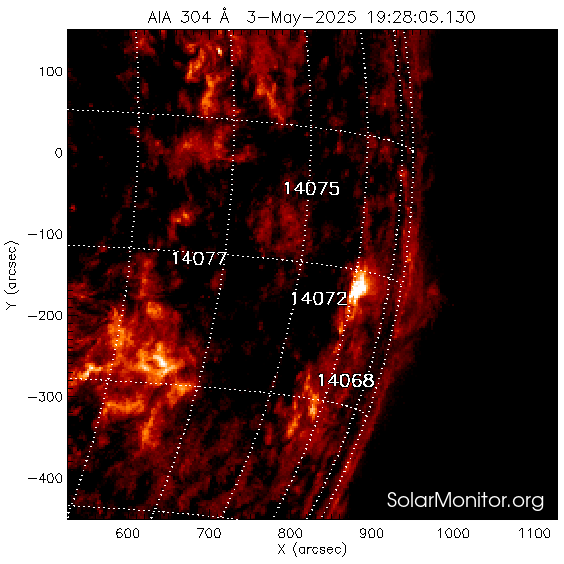

HMI Mag 20250503 17:58 AIA 304Å 20250503 19:28 AIA 335Å 20250503 19:28

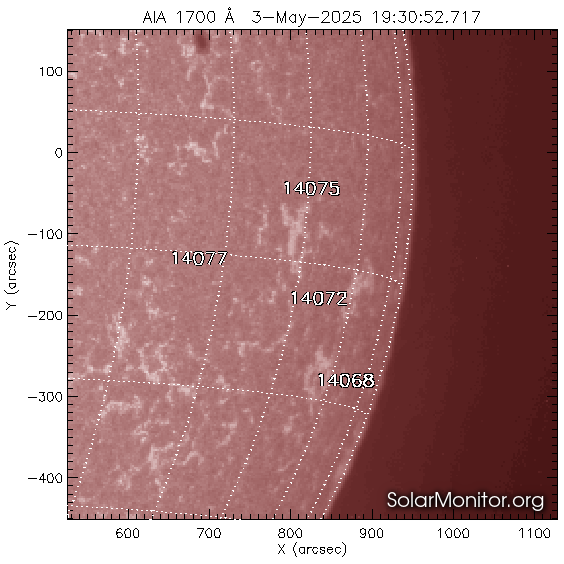

AIA 1600Å 20250503 19:30 AIA 1700Å 20250503 19:30 HMI 6173Å 20250503 18:46


Today's/Yesterday's NOAA Active Regions
NOAA Number
Latest
Position
Hale
Class
McIntosh Class
Sunspot Area
[millionths]
Number of Spots
Recent
Flares
14076 N06W48
(705",142") 		α/α Hsx/Hsx 0080/0070 01/01 -
14079 N07E15
(-245",178") 		βγ/βγδ Ekc/Ekc 1210/1200 17/14 -
14068 S24W91
(868",-387") 		/ / / / -
14072 S19W68
(835",-286") 		/β /Bxo /0010 /03 -
14073 N11W82
(925",189") 		/ / / / -
14075 S11W62
(826",-151") 		/ / / / C1.2(08:12)
/ C1.1(23:16)
14077 S17W49
(688",-237") 		/ / / / -

Class (HH:MM) -Today
Class (HH:MM) -Yesterday

Events not associated with currently named NOAA regions: C1.2(07:14) C1.8(08:26) C1.5(08:45) C1.2(10:23) C1.2(10:55) C1.4(11:08) C1.6(12:32) C2.4(14:01) C1.4(14:30) C2.0(14:53) C2.1(15:51) C1.5(16:49) C1.4(18:55) C2.1(21:24) C3.7(21:39) C1.0(22:25)

Note: The tabulated data are based on the most recent NOAA/USAF Active Region Summary issued on 3-May-2025 00:30 UT . The greyed out and light-blue entries are values from the previous day. Slashed cells indicate that the active region has no spots. The latest positions of the active regions are given in both heliographic and heliocentric co-ordinates. The region positions are valid on 3-May-2025 19:30 UT .
