2 July 2007
20070701 Week Rotation Today Rotation Week 20070703

NOAA
2 Active Regions

Flare Forecast

Coronal Holes

Main

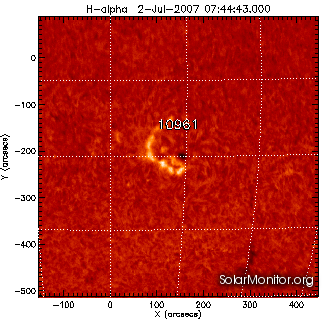

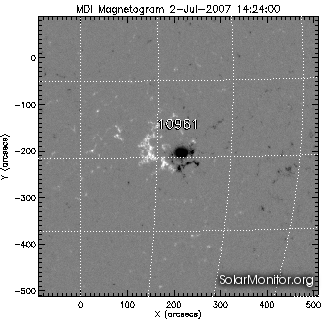

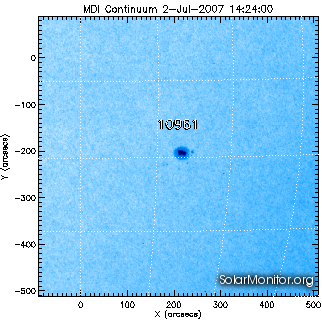

MDI Mag 20070702 14:24 MDI Cont 20070702 14:24 GHN Hα 20070702 07:44

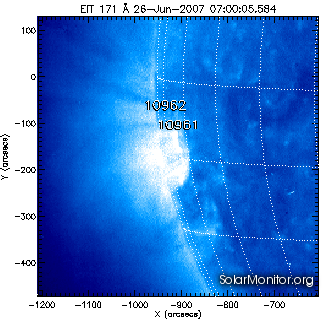

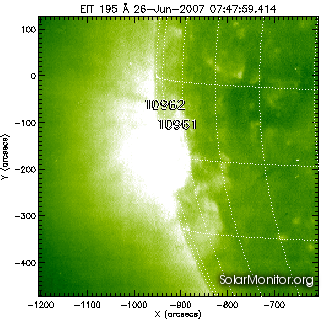

EIT 171Å 20070626 07:00 EIT 195Å 20070626 07:47 SXI X-rays 20070702 00:00


Today's/Yesterday's NOAA Active Regions
NOAA Number
Latest
Position
Hale
Class
McIntosh Class
Sunspot Area
[millionths]
Number of Spots
Recent
Flares
10961 S10W18
(290",-275")
β/β Dso/Dac 0140/0210 08/14 -
10962 S08E11
(-180",-246")
α/α Axx/Axx 0010/0030 02/02 -

Class (HH:MM) -Today
Class (HH:MM) -Yesterday

Events not associated with currently named NOAA regions: None

Note: The tabulated data are based on the most recent NOAA/USAF Active Region Summary issued on 2-Jul-2007 00:30 UT . The greyed out and light-blue entries are values from the previous day. Slashed cells indicate that the active region has no spots. The latest positions of the active regions are given in both heliographic and heliocentric co-ordinates. The region positions are valid on 2-Jul-2007 19:30 UT .
