Today's Coronal Hole Properties | |||||
CHIMERA Number |
Centroid [Heliocentric] |
Width [°] |
Area [%] |
< B > [G] |
< Φ > [Mx] |
1 | E00N09 (-3",260") |
E38-W43 (81) |
13.6 | 0.3 | 5.7e20 |
2 | W42S72 (202",-881") |
E07-W86 (93) |
1.1 | -1.5 | -7.5e20 |
3 | E34S25 (-492",-317") |
E47-E26 (21) |
0.7 | 1.6 | 2.1e20 |
4 | W29N66 (187",912") |
W05-W47 (42) |
0.4 | 0.7 | 1.9e20 |
5 | W20S08 (319",-26") |
W18-W21 (3) |
0.0 | -1.9 | -1.3e19 |
6 | W33S08 (522",-40") |
W32-W35 (3) |
0.0 | -2.8 | -2.0e19 |

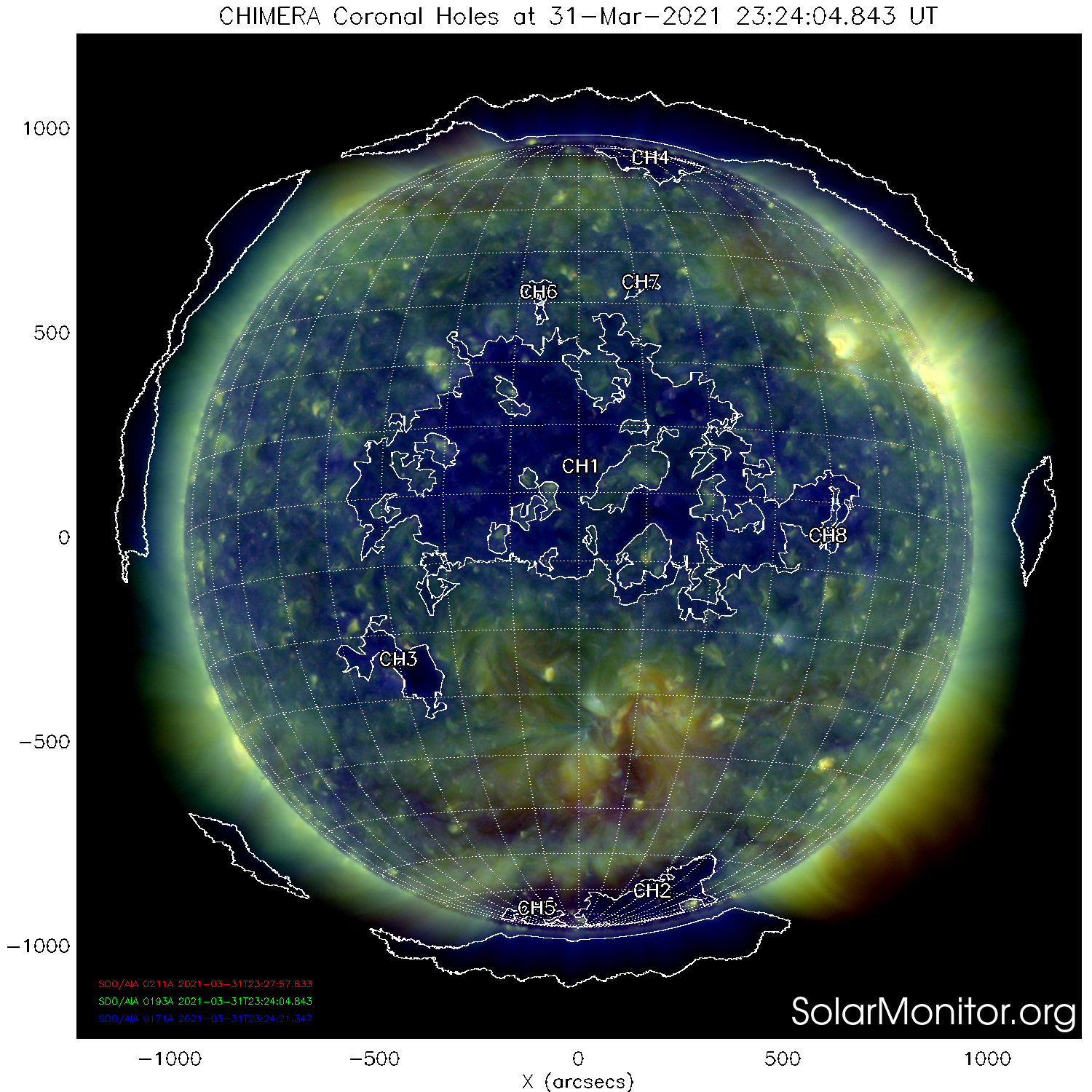

Note: Solar Monitor's coronal hole segmentations are performed by CHIMERA, a copy of which is available at: github.com/TCDSolar/CHIMERA. The operations of the CHIMERA algorithm is described in a peer reviewed paper: arxiv.org/abs/1711.11476. An extensive copy of coronal hole properties are available at: solarmonitor.org/data. The latest positions of the coronal holes are given in heliocentric co-ordinates, and the region positions are valid on 31-Mar-2021 19:30 UT . |
