12497
12501
12502
12503
12498
12499
12500
|
|||||||||||
|
|
|
|||||||||
|
|||||||||||
| Today's Coronal Hole Properties | |||||
CHIMERA Number |
Centroid [Heliocentric] |
Width [°] |
Area [%] |
< B > [G] |
< Φ > [Mx] |
| 1 | W26S55 (246",-735") |
E71-W74 (145) |
8.7 | -2.1 | -1.4e34 |
| 2 | E33N38 (-421",672") |
E71-E11 (60) |
3.8 | 1.1 | 3.3e33 |
| 3 | E50N22 (-688",427") |
E54-E45 (9) |
0.1 | 7.5 | 7.1e32 |
|

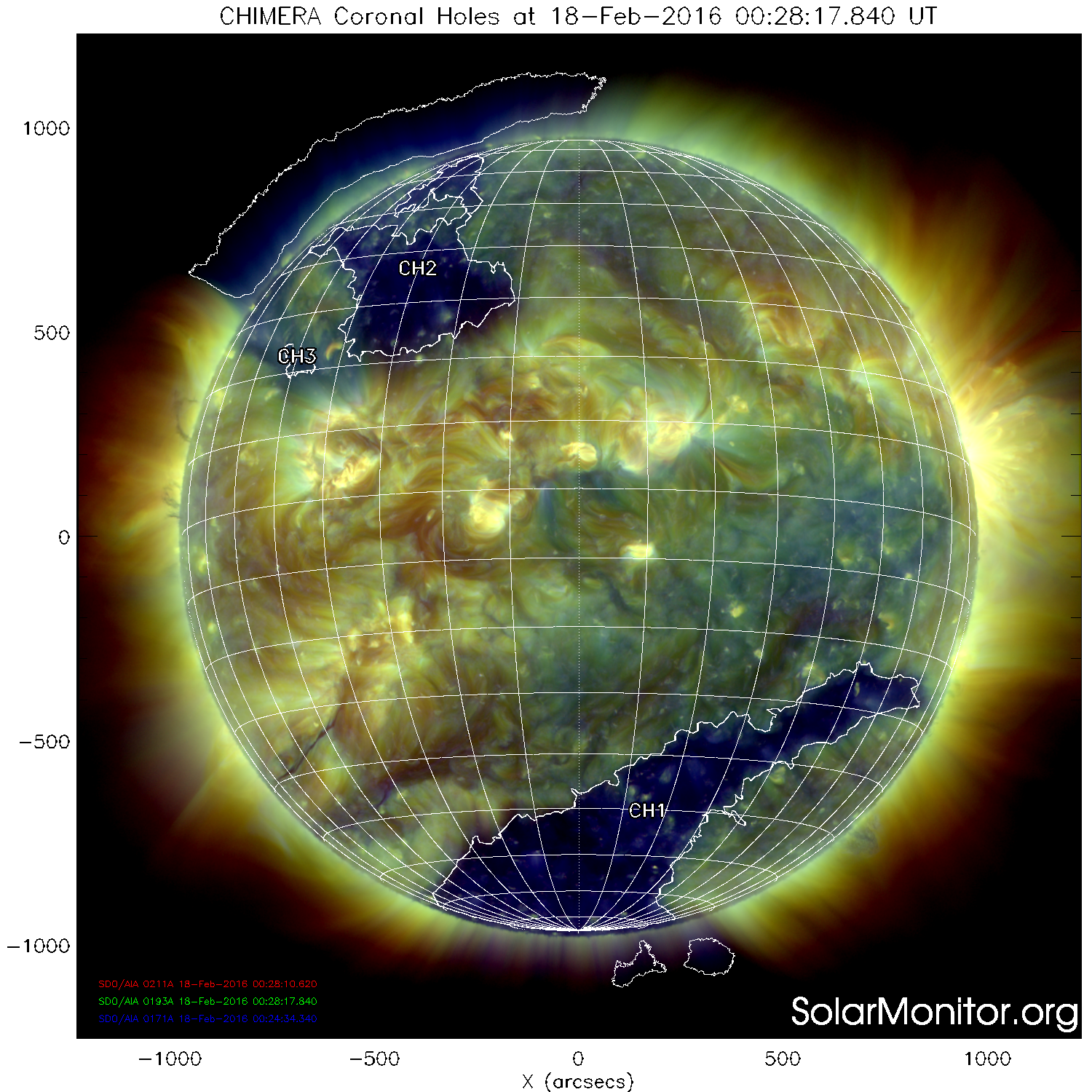

Note: Solar Monitor's coronal hole segmentations are performed by CHIMERA, a copy of which is available at: github.com/TCDSolar/CHIMERA. The operations of the CHIMERA algorithm is described in a peer reviewed paper: arxiv.org/abs/1711.11476. An extensive copy of coronal hole properties are available at: solarmonitor.org/data. The latest positions of the coronal holes are given in heliocentric co-ordinates, and the region positions are valid on 18-Feb-2016 19:30 UT . |
