 4 May 2025
⇐20250503 ⇐Week ⇐Rotation Today Rotation⇒ Week⇒ 20250505⇒


Main Far-side SDO short-wave SDO long-wave
HMI Mag 20250504 22:58 HMI 6173Å 20250504 22:46 No Time Data Available
SWAP 174Å 20250504 19:46 AIA 193Å 20250504 23:33 XRT 20250503 17:08

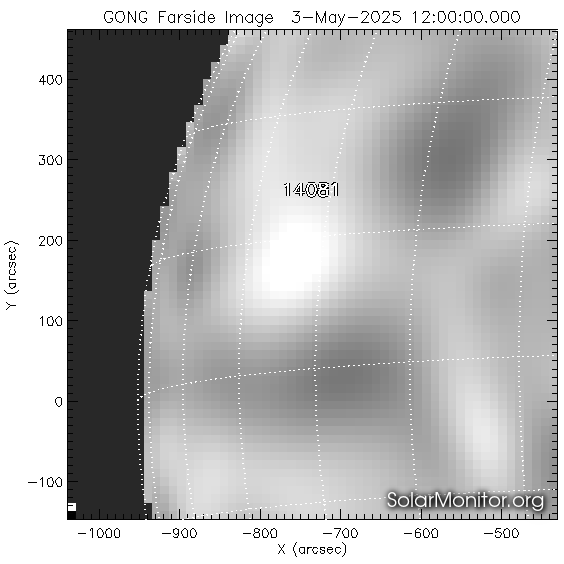

HMI Mag 20250504 22:58 No Time Data Available GONG Farside 20250503 12:00
No Time Data Available AIA 193Å 20250504 23:33 No Time Data Available

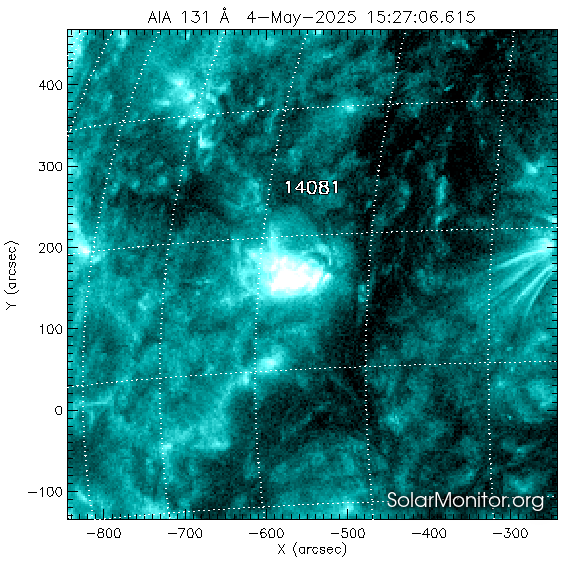

HMI Mag 20250504 22:58 AIA 94Å 20250504 23:33 AIA 131Å 20250504 23:33

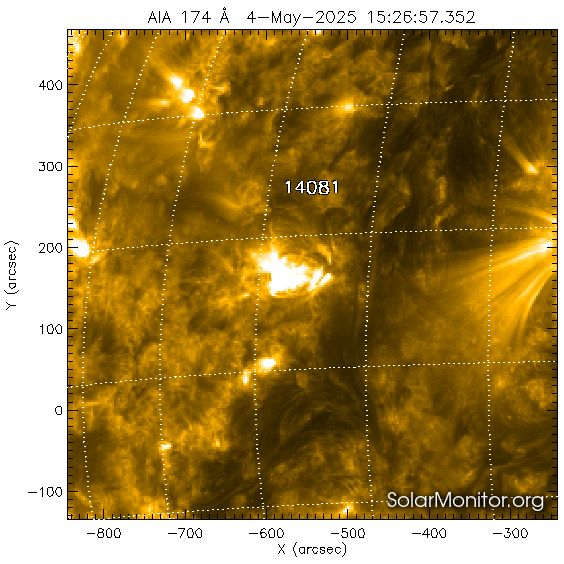

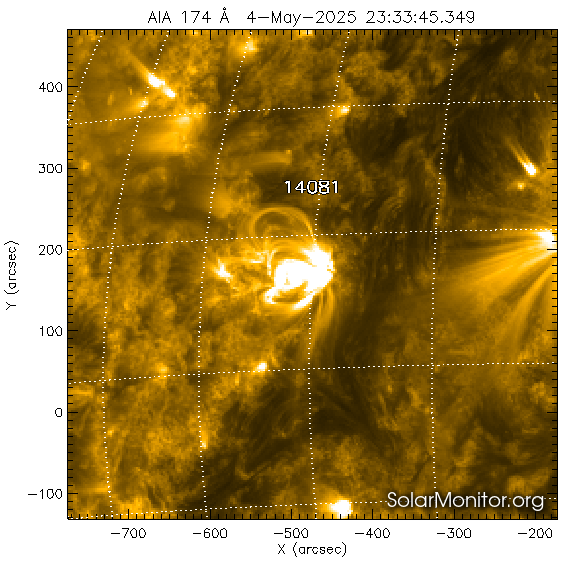

AIA 171Å 20250504 23:33 AIA 193Å 20250504 23:33 AIA 211Å 20250504 23:33

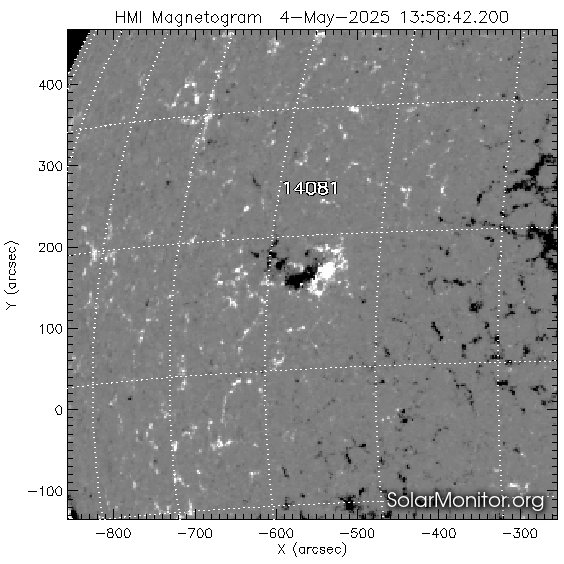

HMI Mag 20250504 22:58 AIA 304Å 20250504 23:33 AIA 335Å 20250504 23:33

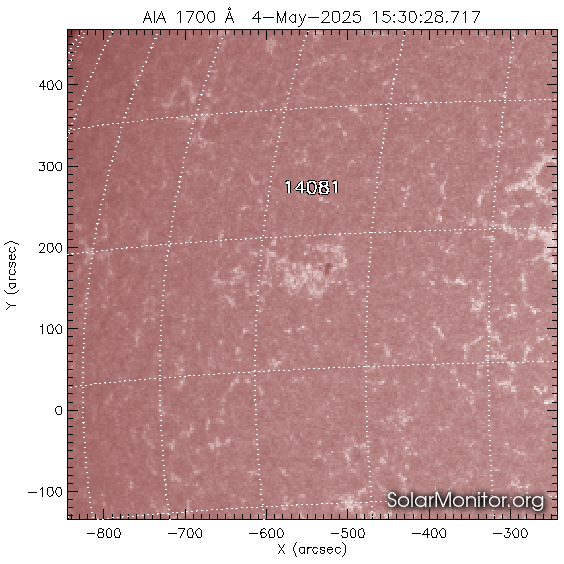

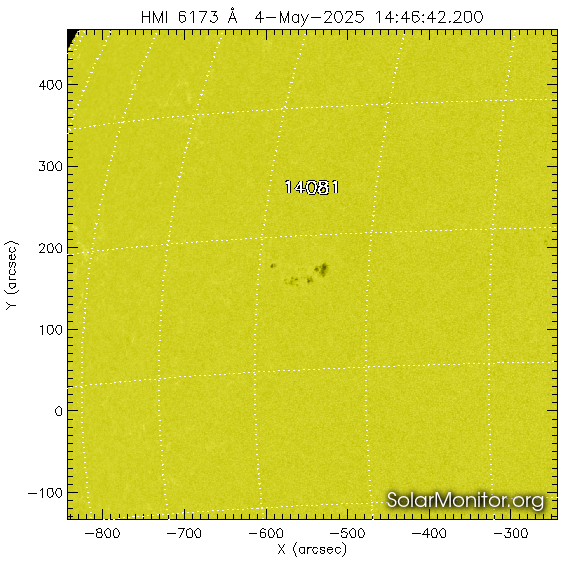

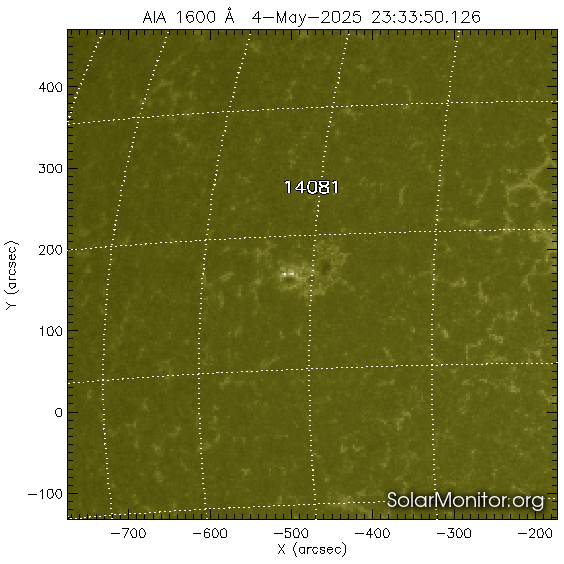

AIA 1600Å 20250504 23:33 AIA 1700Å 20250504 23:33 HMI 6173Å 20250504 22:46


Today's/Yesterday's NOAA Active Regions
NOAA Number
Latest
Position
Hale
Class
McIntosh Class
Sunspot Area
[millionths]
Number of Spots
Recent
Flares
14076 N06W63
(844",127") 		α/α Hsx/Hsx 0070/0080 01/01 -
14079 N08E01
(-16",194") 		βγ/βγ Ekc/Ekc 1200/1210 32/17 C1.4(17:40)
C1.8(16:14)
/ C1.3(23:33)
C1.4(18:55)
C1.5(16:49)
C2.1(15:51)
C2.0(14:53)
C1.4(14:30)
C2.4(14:01)
C1.6(12:32)
C1.4(11:08)
C1.2(10:55)
C1.2(10:23)
C1.5(08:45)
14080 S12W90
(930",-197") 		β/- Bxo/--- 0010/---- 03/-- -

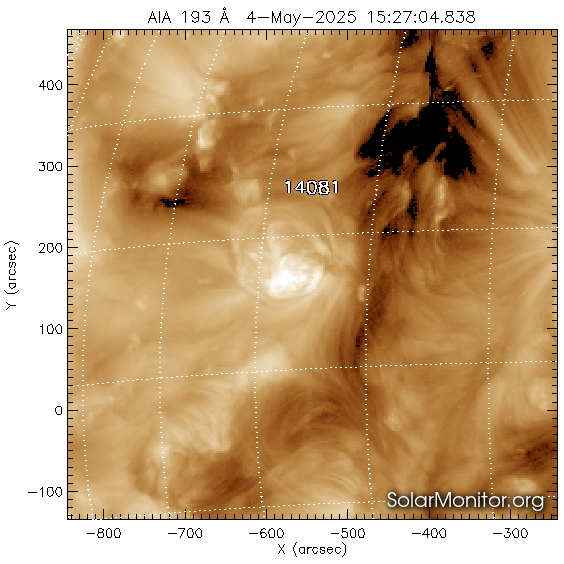

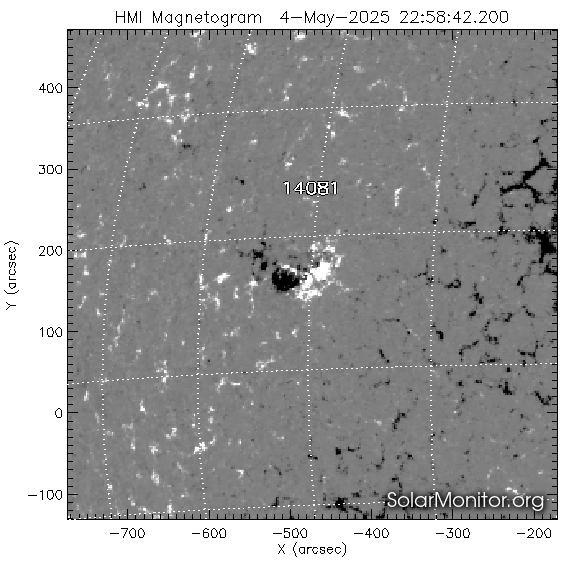

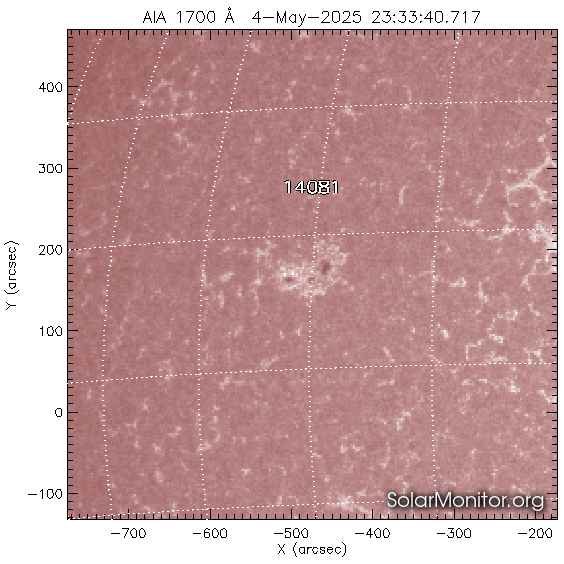

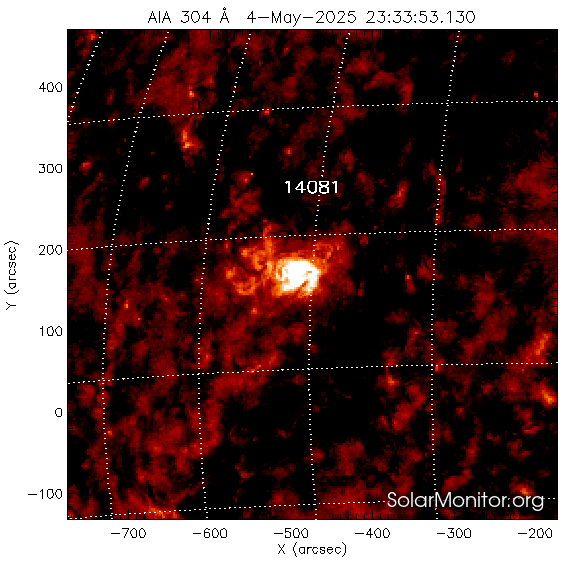

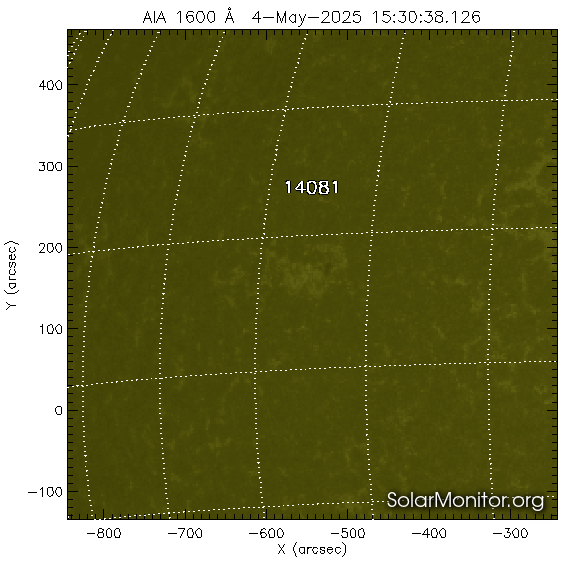

14081 N07E30
(-473",170") 		α/- Hrx/--- 0020/---- 01/-- -
14072 S19W85
(896",-303") 		/ / / / -
14073 N11W91
(933",179") 		/ / / / -
14075 S11W78
(913",-168") 		/ / / / -
14077 S17W66
(832",-253") 		/ / / / -

Class (HH:MM) -Today
Class (HH:MM) -Yesterday

Events not associated with currently named NOAA regions: C1.4(06:27) C1.5(07:43) C1.8(09:58) C2.4(11:22) C5.4(12:26) C1.4(15:56)

Note: The tabulated data are based on the most recent NOAA/USAF Active Region Summary issued on 4-May-2025 00:30 UT . The greyed out and light-blue entries are values from the previous day. Slashed cells indicate that the active region has no spots. The latest positions of the active regions are given in both heliographic and heliocentric co-ordinates. The region positions are valid on 4-May-2025 23:30 UT .
