18 February 2012
20120217 Week Rotation Today Rotation Week 20120219

NOAA
5 Active Regions

Flare Forecast

Coronal Holes

Main Far-side SDO short-wave SDO long-wave

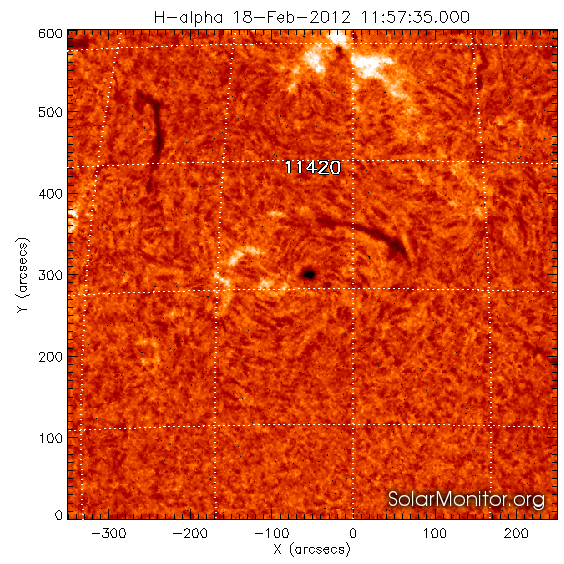

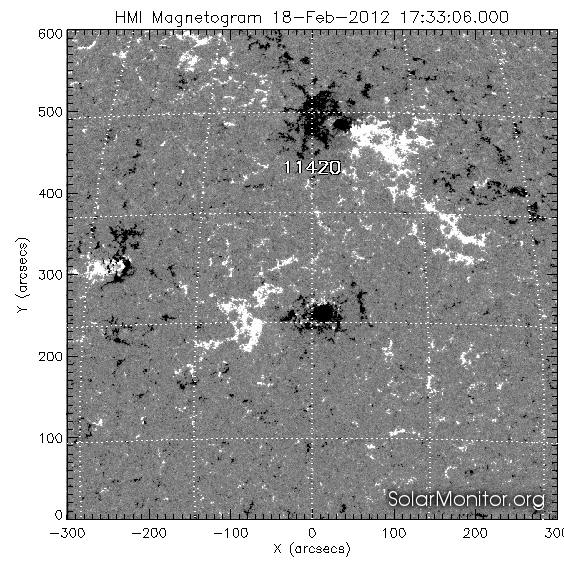

HMI Mag 20120218 17:33 No Time Data Available GHN Hα 20120218 11:57
SWAP 174Å 20120218 19:36 AIA 193Å 20120218 21:57 XRT 20120217 18:03

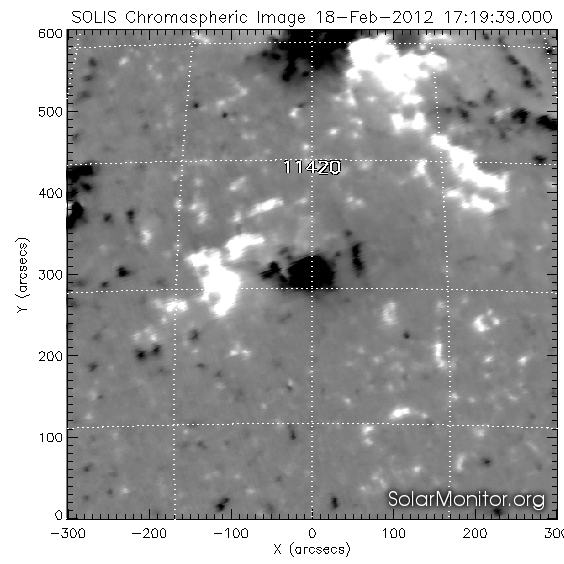

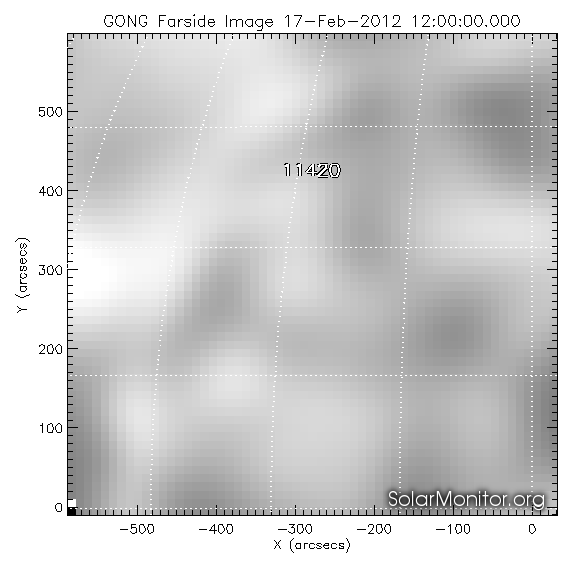

HMI Mag 20120218 17:33 SOLIS Mag 20120218 17:19 GONG Farside 20120217 12:00
No Time Data Available AIA 193Å 20120218 21:57 No Time Data Available

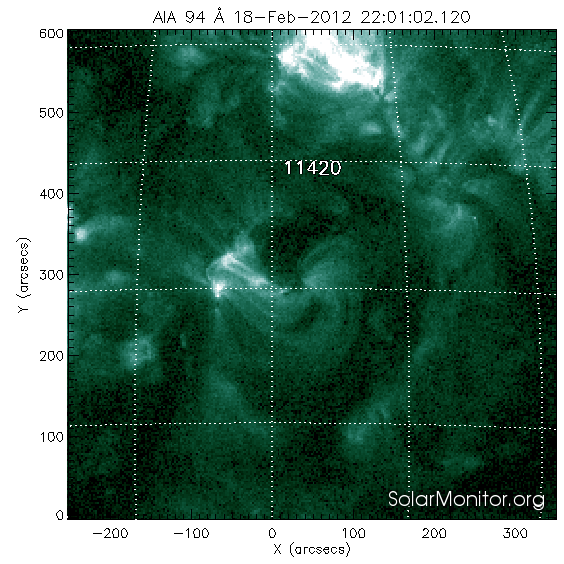

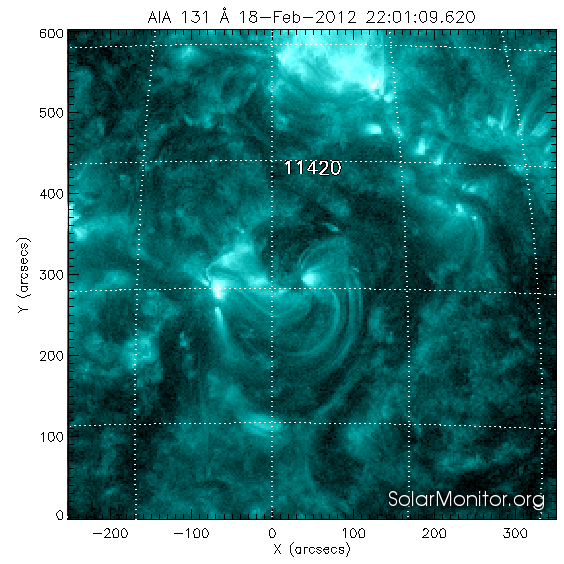

HMI Mag 20120218 17:33 AIA 94Å 20120218 22:01 AIA 131Å 20120218 22:01

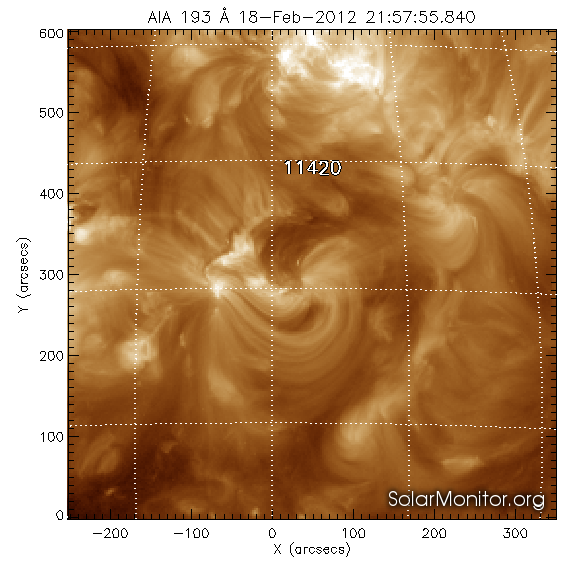

AIA 171Å 20120218 21:58 AIA 193Å 20120218 21:57 AIA 211Å 20120218 22:01
HMI Mag 20120218 17:33 AIA 304Å 20120218 21:58 AIA 335Å 20120218 22:01

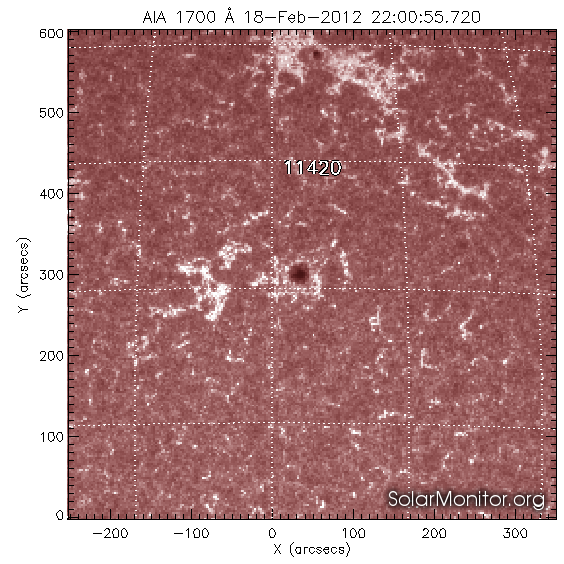

AIA 1600Å 20120218 22:01 AIA 1700Å 20120218 22:00 No Time Data Available


Today's/Yesterday's NOAA Active Regions
NOAA Number
Latest
Position
Hale
Class
McIntosh Class
Sunspot Area
[millionths]
Number of Spots
Recent
Flares
11416 S17W91
(906",-273")
αγ/βγ Hsx/Eso 0110/0160 01/07 -
11418 S23W69
(815",-406")
βγ/βγ Bxo/Bxo 0010/0010 05/05 -
11419 N28W08
(117",343")
βγ/βγ Cso/Cso 0040/0060 06/03 -
11420 N11W04
(65",67")
αγ/αγ Hsx/Hsx 0090/0080 01/01 -
11421 N17E45
(-643",198")
α/- Axx/--- 0010/---- 02/-- -

Class (HH:MM) -Today
Class (HH:MM) -Yesterday

Events not associated with currently named NOAA regions: None

Note: The tabulated data are based on the most recent NOAA/USAF Active Region Summary issued on 18-Feb-2012 00:30 UT . The greyed out and light-blue entries are values from the previous day. Slashed cells indicate that the active region has no spots. The latest positions of the active regions are given in both heliographic and heliocentric co-ordinates. The region positions are valid on 18-Feb-2012 22:00 UT .
